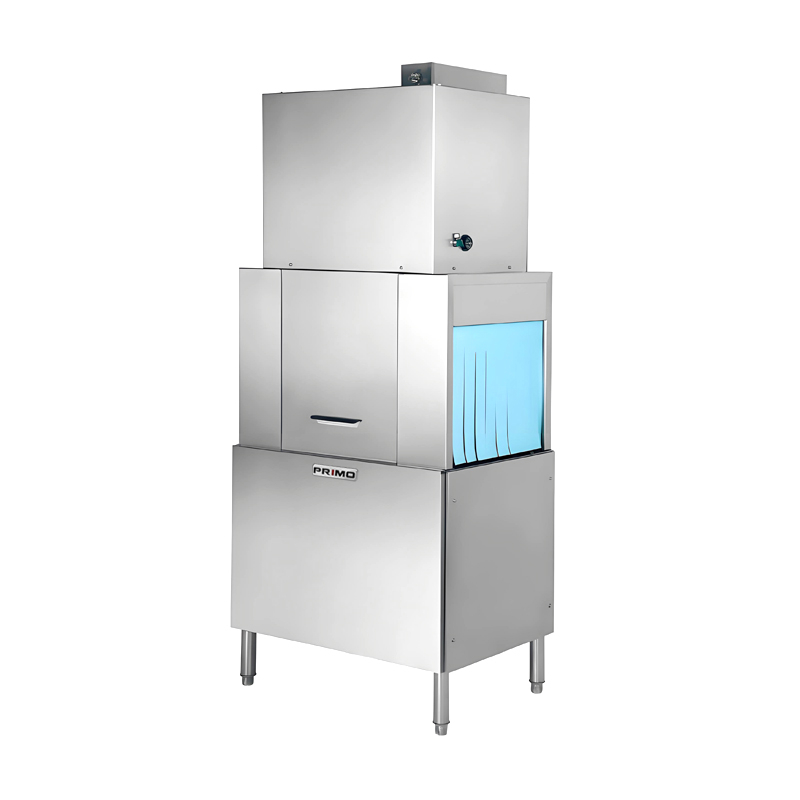

Hood Type Dishwasher

  • External dimension(WxDxH mm):746 x 755 x 1512
  • Heating Method: Electric Heating
  • Washing Capacity (baskets/hour): 60
  • Washing Cycle (seconds): 60 / 90 / 120
  • Basket Size (mm): 500 × 500
  • Maximum Wash Height (mm): 440
  • Washing Temperature (℃): 55–65
  • Rinsing Temperature (℃): 80–90
  • Rinse Water Consumption (L/basket): 2.5
  • Net Weight (KG): 105
  • Wash Pump Power (kW): 0.8
  • Tank Heater Power (kW): 3
  • Booster Heater Power (kW): 12
  • Maximum Power Consumption (kW): 15.8
  • Incoming Water Pressure (Bar): 2–3
  • Incoming Water Hardness (ppm): 34–103
  • Incoming Water Temperature (℃): 10–60
  • Diameter of water inlet hose (inch): G¾
  • Diameter of drain pipe: 40mm(OD)
  • Air Switch Rated Current (A): 40
  • Total Current (A): 24
  • Power Cable Cross-sectional Area (mm²): 6
  • Air Exhaust Volume (m³/min): 2.8
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • 0300800128

  • Primo

  • An effective rinse system uses only 2.5 liters of clean hot water per cycle for lower running costs and energy consumption

  • Built-in pressure boiler designed to raise incoming water to a guaranteed minimum temperature of 82°C for sanitizing rinse

  • Slanted wash arms and ceiling for maximum performance as wash water no longer drops on dishes after rinsing phase

  • Optimal washing results regardless of where the items are placed, as a result of the unique shape of the spray nozzles and the upper and lower rotating arms

  • Internal components (wash arms, rinse arms, tank filter and rack support) can be easily removed for daily cleaning

  • Tank filter can be accessed from the front for easy cleaning

  • Main components are accessible from the front for easy service and maintenance

  • User-friendly electronic controls with built-in programming, self-diagnostics for easy serviceability

  • Washing can be stopped when door is open to avoid risks of injuries

  • Safety design to prevent dry heating failure at low water level

  • Seamless deep-drawn wash tank with rounded corners eliminates hygiene blind spots
