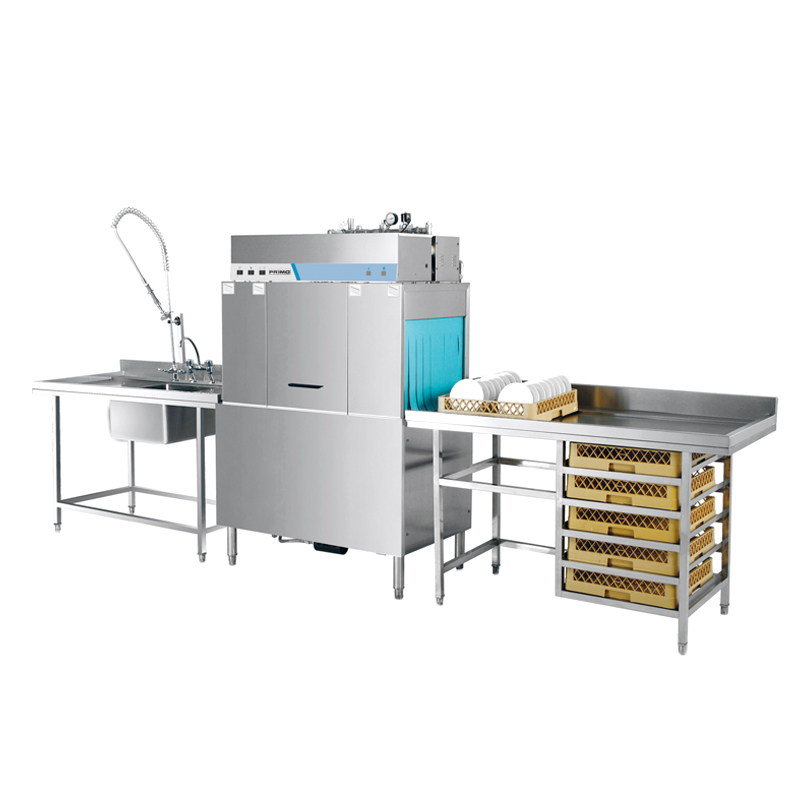

Commercial One-tank Single Rinse Conveyor Type Dishwasher

  • External dimension(WxDxH mm):1148 x 706 x 1840
  • Heating Method: Electric Heating
  • Washing Capacity (baskets/hour): 200
  • Basket Size (mm): 500 × 500
  • Maximum Wash Height (mm): 450
  • Washing Temperature (℃): 55–65
  • Rinsing Temperature (℃): 80–90
  • Rinse Water Consumption (L/basket): 2
  • Net Weight (KG): 224
  • Wash Pump Power (kW): 1.5
  • Tank Heater Power (kW): 7.5
  • Booster Heater Power (kW): 36
  • Conveyor Motor Power (kW): 0.2
  • Maximum Power Consumption (kW): 46
  • Incoming Water Pressure (Bar): 2–5
  • Incoming Water Hardness (ppm): 34–103
  • Incoming Water Temperature (℃): 10–60
  • Diameter of water inlet hose(inch): G¾"
  • Diameter of drain pipe: G2" or DN50
  • Air Switch Rated Current (A): 100
  • Total Current (A): 70
  • Power Cable Cross-sectional Area (mm²): 25
  • Air Exhaust Volume (m³/min): 10
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • 0300800008

  • Primo

  • Auto On/Off switches reduce water and energy consumption when no rack is loaded

  • Thermal control precision ensures that rinse water temperature is always optimized for perfect hygiene

  • Built-in pressure reducer ensures stable rinse water pressure during the rinse phase

  • Advanced filtering system keeps the wash water free of food residue thus improving the efficiency of the detergent for an optimal washing result

  • User-friendly operation panel with temperature display

  • Internal components (wash arms, rinse arms, tank filter, rack support) can be easily removed for cleaning

  • Electrical control box and main components on top and front for easy service and maintenance

  • Preset external chemical connection for quick on-site installation

  • Washing can be stopped when door is open to avoid risks of injuries

  • Safety design to prevent dry heating failure at low water level

  • Mechanical control panel – stable and durable, with alarm alerts and fault diagnosis

  • Equipped with emergency stop switch and main power switch, compliant with CE safety standards
