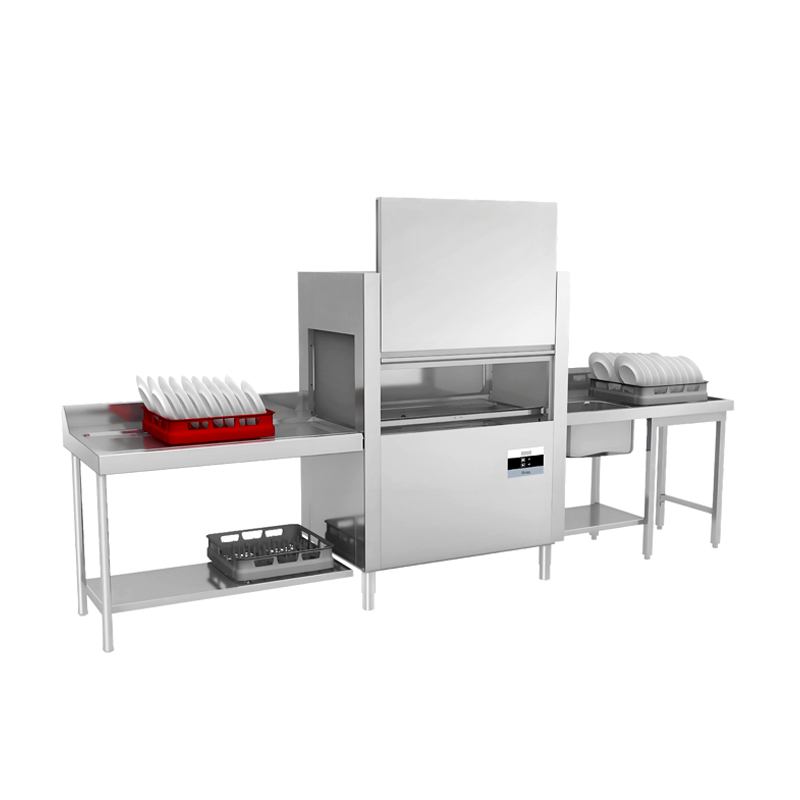

Conveyor Type Dishwasher (Reversable)

  • Dimensions W x D x H:1150 x 770 x 1615 cm
  • Door/hood opening: 45 cm
  • Mouth Dimension: W 540 x H450 mm
  • Rack Dimension : W500 x D500 mm
  • Main wash module: L 1150 mm
  • Width of drying tunnel: 600 mm
  • Voltage: 380 V/ 3 PH
  • Tank Capacity : 70 Ltr
  • Boiler Capacity: 17 Ltr
  • Maximum height for glasses: 45 cm
  • Maximum height for dishes: 45 cm
  • Maximum height for trays: GN1/1 (60 x 40cm)
  • Productivity: 60/120 racks/hour
  • Power with hot water supply: 22 kW
  • Power with cold water supply: 28,5 kW
  • Power with plus heat recovery system: 24,7 kW
  • Maximum water consumption: 150 litres/hour
  • Maximum water consumption: 1,3 litres/rack
  • Washing temperature : 60°C
  • Rinsing temperature : 80°C
Availability:
Quantity:
Inquiry Add to Inquiry List

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • ISYTECH31.10.1

  • GOLGED

  • Material: AISI 304 for tank & wash chamber/ AISI 201 for outer panels

  • Main wash module - construction: Double skin

  • Main wash module - door : Double skin & insulated

  • Wash pump type: dualflow

    1. Compact external dimensions

    2. The user interface is the acclaimed LED ProSmart, which provides simple and intuitive control of machine functions.

    3. Low water consumption, 1.2 or 1.3 or 1.4 Liters per Rack depending on Model.

    4. On site machine direction can be changed.

    5. Options for Hot or cold water feed models

    6. Production capacity with 120/60 Baskets per Hour

    7. Can be supplied Dryer Zone as an option.

    8. Corner Dryer zone option available

    9. with mains water supply pressure (we recommend installing a pressure regulator with a pressure gauge, in cases where the supply pressure is not constantly equal to or greater than 2 bar)..
