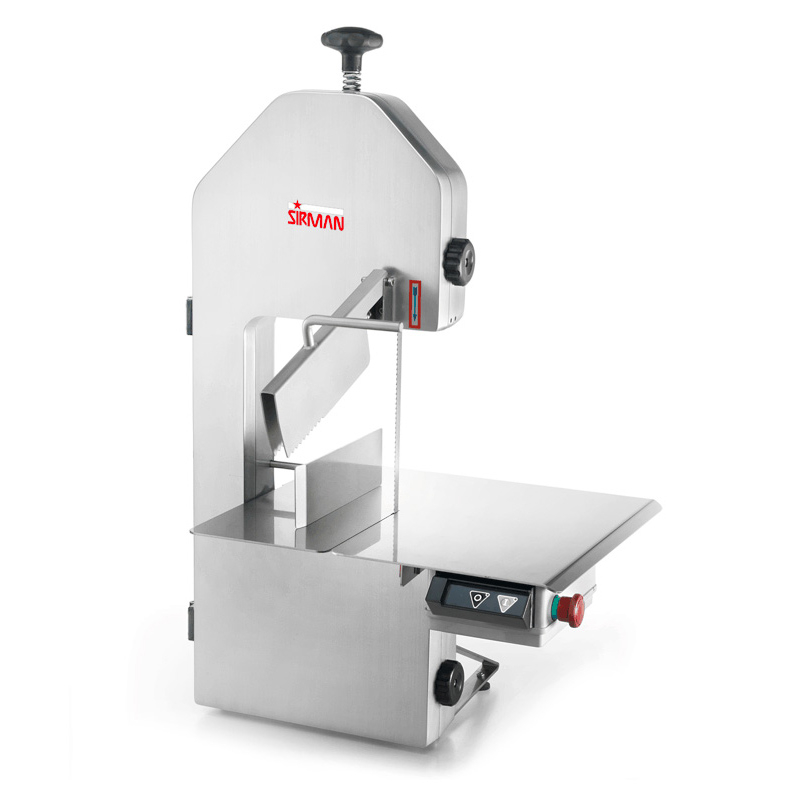

Bone Saw Machine (SO ALLUMINIO Series )

Code:0300500482
  • Product Dimension:510*530*778mm
  • Packing Dimension: 720x570x1200 mm
  • Blade Length: 1550 mm
  • Motor: 1ph - Hp 1,5 / rpm 1400
  • 3ph - Hp 2 / rpm 1400
  • Pulley: mm 210
  • Working surface: mm 415x430
  • Net weight: 32 kg
  • GW:44kg
Code:0300500483
  • Product Dimension:600*530*915mm
  • Packing Dimension: 720x570x1200 mm
  • Blade Length: 1650 mm
  • Motor: 1ph - Hp 1,5 / rpm 1400
  • 3ph - Hp 2 / rpm 1400
  • Pulley: mm 210
  • Working surface: mm 445x485
  • Net weight: 39 kg
  • GW:51kg
Code:0300500484
  • Product Dimension:600*530*915mm
  • Packing Dimension: 750x570x1200 mm
  • Blade Length: 1840 mm
  • Motor: 1ph - Hp 1,5 / rpm 1400
  • 3ph - Hp 2 / rpm 1400
  • Pulley: mm 250
  • Working surface: mm 445x485
  • Net weight: 40 kg
  • GW:52kg
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • 0300500482/483/484

  • SIRMAN

  • Simple and sturdy machines that are safe and easy to use.

  • Stand-alone structure made out of cast anodized aluminium, shiny, hygienic and rustproof.

  • Features a counter, meat pusher and serving slicer in stainless steel AISI 304.

  • 24V controls with safety micro-switch on door, redundant ECU and motor brake (EC).

  • Ease and precision in both horizontal and vertical adjustment of the upper pulley.

  • Maximum blade adhesion to the pulley, thanks to the semi-curved shape of the pulleys and ideal adjustment.

  • Sealed bearings on upper pulley.

  • Smooth cleaning thanks to 2 special manufacturing details:

  • All the electrical parts are located beneath the work surface inside an appropriate IP 65 insulated box.

  • By simply unscrewing two knobs, you can remove the blade, upper pulley and its support, thereby making for a surface void of any encumbrance.

  • Powerful asynchronous and ventilated 4-pole motors protected by sealing oil sump.

  • Equipped with 16 mm tempered blades for cutting bones, frozen foods and fresh foods.
