Commercial Kitchen Design: Workflow And Layout Planning

A kitchen's layout determines its speed, its labor costs, and its safety record. Staff moving 20 extra feet per order costs real money — a poor layout adds miles of walking every shift and creates collision points in service. Design the flow first; pick equipment second.

As a Commercial Kitchen Expert, I have seen identically equipped kitchens run 30% faster after simple workflow re-layouts.

The Six Work Zones

• Receiving — delivery entrance with scales, space to check invoices, and a clear path to storage

• Dry and Cold Storage — close to receiving and prep, away from heat sources

• Prep — between storage and cooking, with tables, sinks, and small equipment

• Cooking Line — ranges, ovens, fryers, and hoods arranged in the order food is finished

• Plating and Pass — the hot window where plates are assembled and picked up

• Dish and Warewashing — at the back, separated from food flow to prevent cross-contamination

The Flow Rule

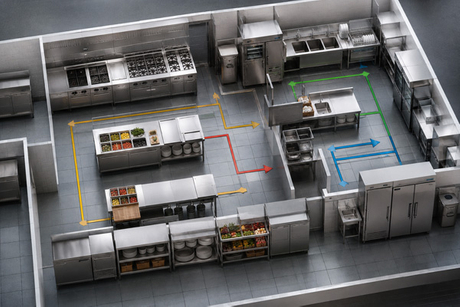

Food should move in one direction: receiving → storage → prep → cooking → plating → service. Returning traffic — staff walking against the food flow — causes collisions, spills, and contamination. Dish returns travel the opposite edge of the kitchen, keeping soiled items away from food paths.

Key Dimensions That Matter

• Aisles: Main aisles need 36–48 inches; equipment aisles with drawers open require 44–60 inches. Under 36 inches, staff cannot pass safely with hot items.

• Cooking Line Depth: 4–6 feet of working space in front of the line; 3 feet minimum behind equipment for service access.

• Work Triangles: Group each workstation's sink, prep surface, and equipment within arm's reach — a stretched triangle costs steps on every order.

Hot and Cold Zoning

Separate heat-producing equipment (ovens, fryers, steamers, dishwashers) from cold storage and prep. Adjacent heat forces refrigeration compressors to work harder and shortens food holding times. A good design clusters hot equipment under one hood run — cheaper to vent, easier to cool.

Common Design Mistakes to Avoid

• Undersized aisles — the #1 safety problem; never below 36 inches

• Storage far from prep — every restock trip wastes minutes and labor

• Dish station beside food prep — cross-contamination risk that fails inspections

• No dedicated hand sink in each zone — code violation and a hygiene risk

• Equipment bought before layout — a great range with no hood clearance is a fire hazard, not an asset

FAQ

1. What is the standard aisle width in a commercial kitchen? Main aisles need 36–48 inches minimum. Equipment aisles with open drawers or doors require 44–60 inches for safe access.

2. What are the main zones in a commercial kitchen layout? Receiving, dry and cold storage, prep, cooking, plating/pass, and dishwashing — arranged so food flows one direction from delivery to service.

3. How do I design an efficient commercial kitchen workflow? Route food one way (receiving → storage → prep → cooking → plating), cluster hot equipment under one hood, group each workstation's tools within reach, and keep dishwashing isolated from food paths.

The Bottom Line

Layout is the cheapest performance upgrade a kitchen can make. NTSmart provides commercial kitchen equipment and layout guidance that follow food flow and code requirements.
