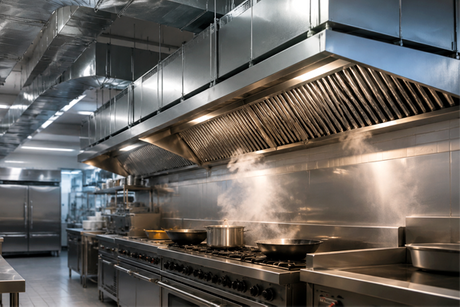

Mastering Kitchen Air: Your Exhaust Fan Blueprint!

Is Your Kitchen Breathing Right?

Unlock Perfect Airflow!

Hey kitchen warriors!

Ever walked into a commercial kitchen and felt instantly stifled?

Or worse, seen smoke linger like an uninvited guest?

Your exhaust fan is the unsung hero, but picking the right one can feel like a riddle!

As your Commercial Kitchen Expert, I’m here to simplify it. A great ventilation system isn't just about clearing smoke;

it's about:

✅ Safety: No more choking fumes or fire risks!

✅ Comfort: Happy chefs, happy food!

✅ Efficiency: Cut those energy bills and keep things running smoothly.

Ready to clear the air?

Here are 3 crucial steps to choosing your kitchen’s perfect exhaust fan:

The 3-Step Blueprint for Flawless Kitchen Ventilation

Your pro guide to designing a high-performance, quiet kitchen ventilation system. Follow these three essential steps.

Step 1: Calculate Your True Airflow (CFM / m³/h)

Don't guess your fan size. Calculate your kitchen's specific need.

How to Calculate:

• For Home Kitchens:

  Baseline: 35 CFM for every 4 inches (or 60 m³/h for every 10 cm) of range hood width.

  Adjust for Cooking:

  Heavy Searing/Frying: Multiply baseline by 1.3 to 1.5.

  Light Steaming/Boiling: Baseline is sufficient.

• For Commercial/Pro Kitchens (Capture Velocity Method):

  Formula: Airflow = Hood Area × Capture Velocity × 60 (for CFM)

  Capture Velocity:

  Low Heat (steamers): 50 ft/min (0.25 m/s)

  Medium Heat (ranges): 60-80 ft/min (0.3-0.4 m/s)

  High Heat (woks, fryers): 80-100 ft/min (0.4-0.5 m/s)

Step 2: Beat Static Pressure with Smart Ducting

Static pressure is the resistance from ducts and filters that kills airflow. Here’s how to minimize it.

How to Design Ductwork:

• Keep ducts short and straight. The most direct path to the outside is best.

• Use smooth, gradual bends—never sharp 90-degree elbows. Fewer bends are better.

• Use properly sized, rigid, smooth-walled ducts. Avoid undersized or flexible ducts.

• Factor in all accessories. Add the pressure drop from filters, purifiers, and dampers to your total system calculation.

Key Action: Check the fan's performance curve. Ensure it delivers your target CFM at your system's final calculated static pressure.

Step 3: Select the Right Equipment

The right gear ensures quiet, efficient, and reliable performance.

How to Choose Your System:

• Fan Type: Always choose a Centrifugal Fan (Blower) for ducted systems. It’s built to handle pressure. Avoid Axial fans—they can't push air through ducts effectively.

• Motor & Drive: Prioritize a Direct Drive fan for higher efficiency and lower noise. An EC Motor will save significant energy over time.

• Makeup Air (MUA): This is critical. If your system exhausts over 400 CFM (~700 m³/h), you must install a makeup air unit to replace the air you remove. This prevents dangerous negative pressure and ensures your exhaust fan works as intended.

Maintenance Matters: If you have an oil fume purifier (and many larger kitchens do!), remember: it needs regular cleaning to stay effective. A clogged purifier drastically reduces efficiency.
